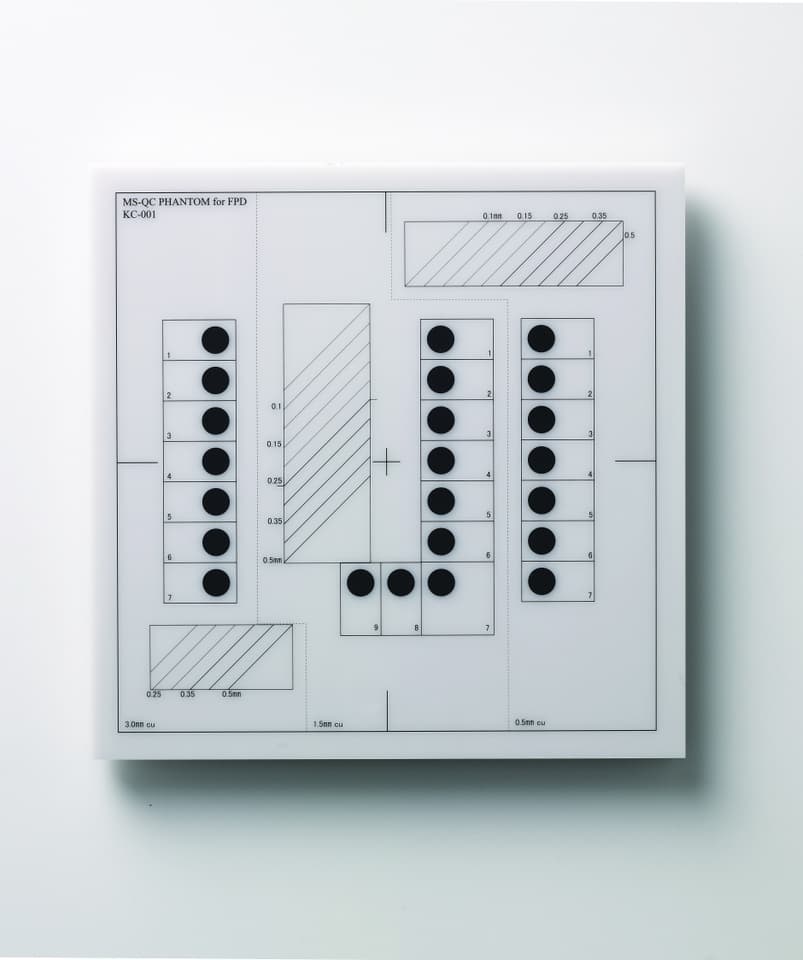

Make daily check for FPD simple under various x-ray photography.

 Size 20x20cm




  • Ensure the quality control for image with wide dynamic range at one time of fluoroscopy/radiography.
  • Copper bases of thickness 0.5mm, 1.5mm and 3.0mm are capable for wide range of photography.
  • Checking spatial resolution with wire chart, and contrast resolution and dynamic range with aluminum steps.
  • The software to record result (Excel) is available as the option.

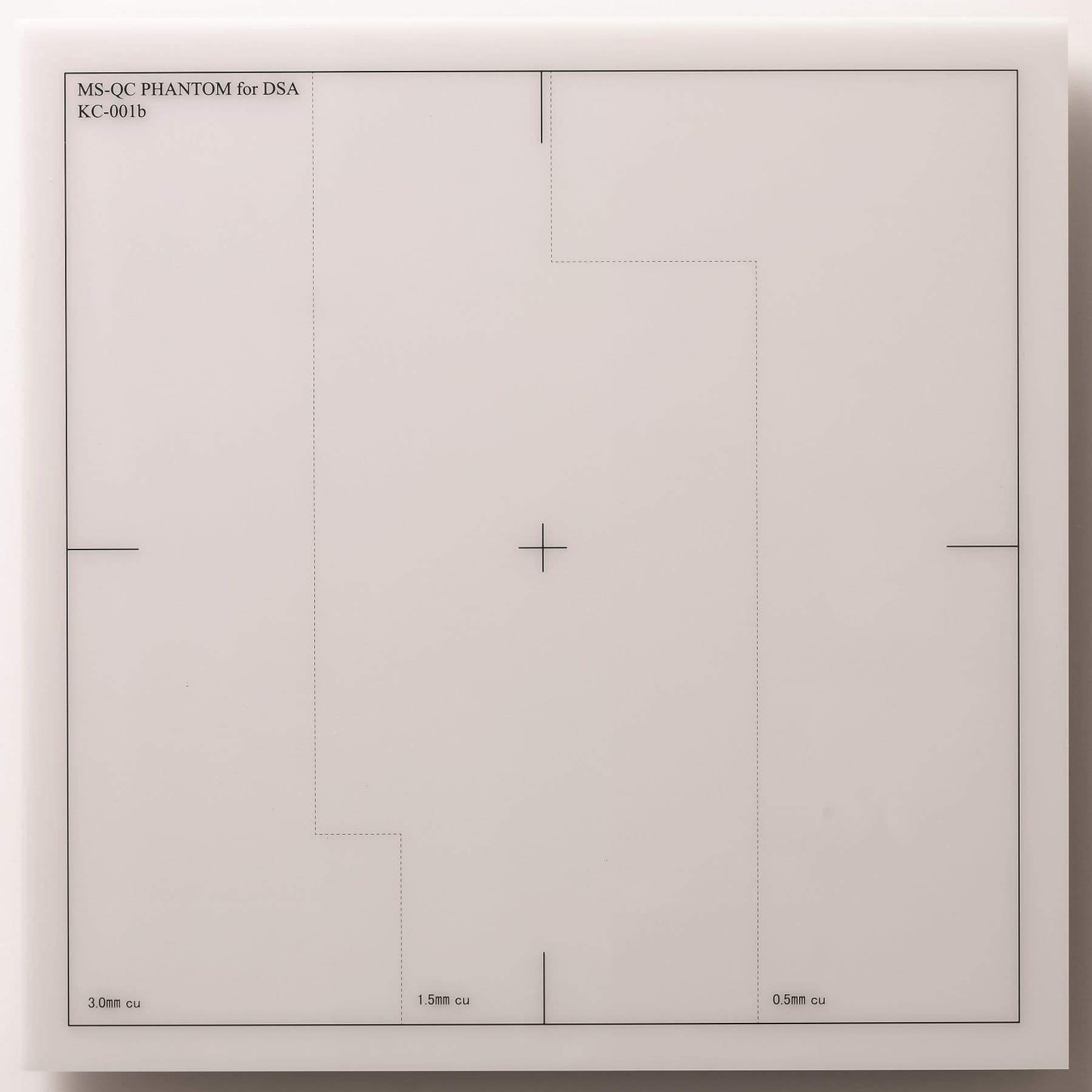

Also KC-001B type for daily check of DSA is available.

Copper base

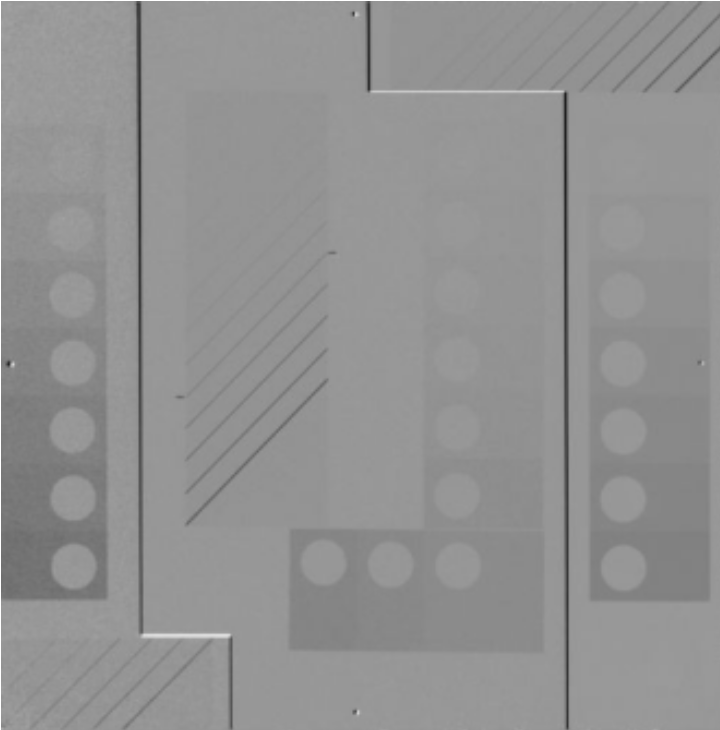

Subtraction image

Please note that specification and design is subject to change without notice.
Jointly-developed with Tohoku University and Sendai Kosei hospital, Japan.
Reference:Chida K, Quality control phantom for flat panel detector X-ray systems. Health Phys. 2013 Jan;104(1):97-101.)
